- Place of Origin: Jinan
- Brand Name: LASERPWR
- Model Number: T60

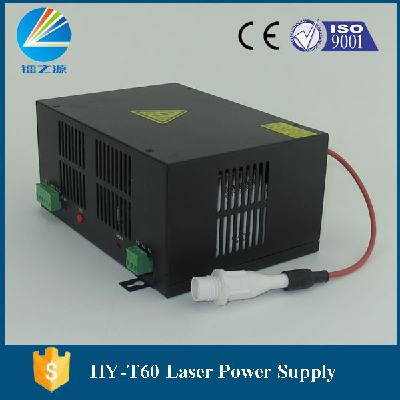

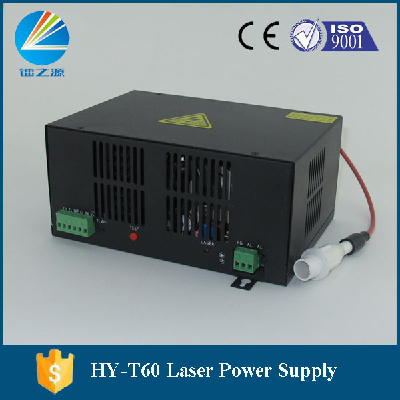

HY-T60 Co2 laser power supply for 60W plywood cutting machine
Main features
1) Good compatibility: It can be applicable to 40W, 50W and 60W laser tube manufactured by various factories. |
2) Cutting type or sculpting type: The cutting type has a good power stability and strong adaptability; while the sculpting type has a quick response speed and good engraving effect. It also can prolong laser tube’s service life. |
3) Easy Control: The start and stop of laser can be easily controlled by TTL level. |
4) The power supply has output open circuit protection. |
5) The power supply has TTL signal indication, water through signal indication and laser output indication. |
6)This power supply has the BUTTON to test output laser manually. |
7) Application: Sculpture and cut acrylic, fabric, double color sheet and rubber, etc. |
Specifications
Input | Input voltage | AC 220V or 110V(please specify when placing order) |
AC frequency | 47-440HZ | |
Max input power | 450W | |
Output | Max output current | 3A |
Max output voltage | DC 35KV | |
Max output current | DC 24mA | |
Efficiency | >=90%(full load) | |
MTBF(Mean time between failure) | >=10000hours | |
Response speed | <=1ms(from the TTL signal is given to the output current up to 90% of setting current) | |
Withstand voltage | Input-output,input-enclosure:AC1500V 10mA 60s,output cathode is connected with enclosure. | |
Weight | 2.2kg | |
Environment | Operating temperature:-10~40degrees, relative humidity:<=90% | |
Cooling | Force air cooling(FAC) | |
Dimension | L*W*H=207*144*97mm | |
We will provide 1 year warranty for each power supply.
Will you interested in our products,please feel free to contact me.
Fannie
Email:sales003@laserpwr.com
Skype: sales003_92
Wechat: x18865537453
Mobile Phone/WhatsApp: 0086-15165137380
Shandong Laser Source Technology Co.,Ltd./Jinan Hongyuan Electric Co.,Ltd.
