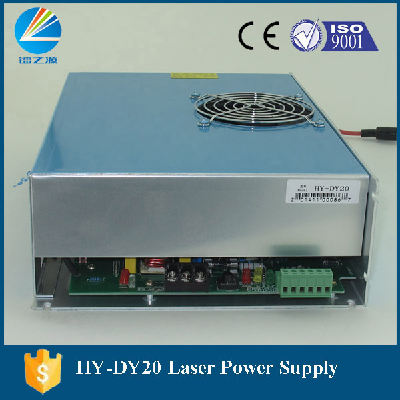

HY-DY20 Co2 laser power supply 150w for RECI W6 W8 Co2 laser tube

HY-DY20 Co2 laser power supply 150w for RECI W6 W8 Co2 laser tube

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: Qingdao,Shanghai
  • Payment Terms: D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2009-11-06
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  0.05
  • Place of Origin:  Jinan
  • Brand Name:  LASERPWR
  • Model Number:  DY20
  • Weight: 3.000 kg

1)This power supply is specially designed for special laser tube. It makes laser tube output larger and more stable.

2) Quick response speed and good effect: It can enlarge laser power and prolong laser tube’s service life.

3) Easy Control: The start and stop of laser can be easily controlled by TTL level.

4) The power supply has output open circuit protection.

5) The power supply has TTL signal indication, water through signal indication and laser output indication.

6)This power supply has the BUTTON to test output laser manually.

7) Application: Sculpture and cut acrylic, fabric, double color sheet and rubber, etc.


  • Size:  0.05
  • Place of Origin:  Jinan
  • Brand Name:  LASERPWR
  • Model Number:  DY20
  • Weight: 3.000 kg

Type

HY-DY20

Input

Input voltage

AC220V or 110V(please specify when placing order)

AC frequency

47-440HZ

Max input power

1000W

Max input current

10A

Output

Max output voltage

50KV

Max output current

35mA

Efficiency

>=90%(full load)

MTBF(Mean time between failure)

>=10000hours

Response speed

<=1ms(from the TTL signal is given to the output current up to 90% of setting current)

Withstand voltage

Input-output,input-enclosure:AC1500V 10mA 60s,output cathode is connected with enclosure.

Environment

Operating temperature:-10~40degrees, relative humidity:<=90%

Cooling

Force air cooling(FAC)

Dimension

79*200*290mm

Weight

3.14kg
