- Size: 0.05
- Place of Origin: Jinan
- Brand Name: LASERPWR
- Model Number: DY10
- Weight: 3.000 kg
- :
- :
- :
- :

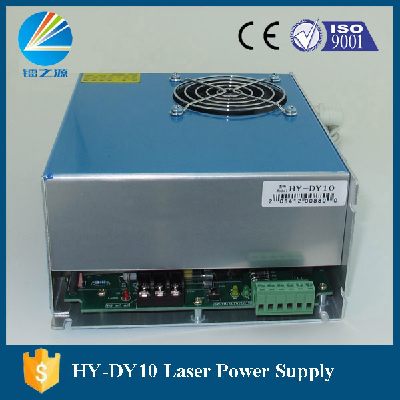

1)This power supply is specially designed for special laser tube. It makes laser tube output larger and more stable.
2) Quick response speed and good effect: It can enlarge laser power and prolong laser tube’s service life.
3) Easy Control: The start and stop of laser can be easily controlled by TTL level.
4) The power supply has output open circuit protection.
5) The power supply has TTL signal indication, water through signal indication and laser output indication.
6)This power supply has the BUTTON to test output laser manually.
7) Application: Sculpture and cut acrylic, fabric, double color sheet and rubber, etc.
- Size: 0.05
- Place of Origin: Jinan
- Brand Name: LASERPWR
- Model Number: DY10
- Weight: 3.000 kg
- :
- :
- :
- :
Type | HY-DY10 | |
Input | Input voltage | AC220V or 110V(please specify when placing order) |
AC frequency | 47-440HZ | |
Max input power | 450W | |
Max input current | 5A | |
Output | Max output voltage | 35KV |
Max output current | 24mA | |
Efficiency | >=90%(full load) | |
MTBF(Mean time between failure) | >=10000hours | |
Response speed | <=1ms(from the TTL signal is given to the output current up to 90% of setting current) | |
Withstand voltage | Input-output,input-enclosure:AC1500V 10mA 60s,output cathode is connected with enclosure. | |
Environment | Operating temperature:-10~40degrees, relative humidity:<=90% | |
Cooling | Force air cooling(FAC) | |
Dimension | 78*155*75mm | |
Weight | 1.75kg | |
