- Place of Origin: Jinan
- Brand Name: LASERPWR
- Model Number: C80

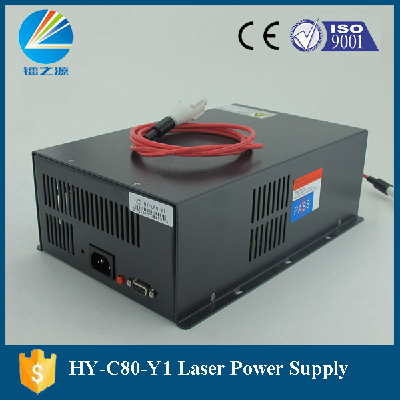

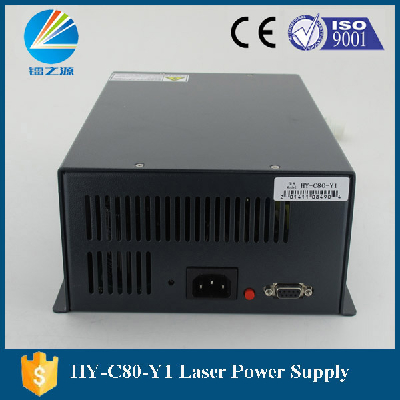

CO2 80W power source for DB9 laser machine
Model:HY-C80Y1
Main features
1)This power supply can remarkably reduce spot diameter, and make carving and engraving greater fine. |
2) Excellent low power control: This power supply has special advantage or low power control. It can stably control laser power even in 0-7mA. This new function especially is applied for adhesive sticker, score and figure engraving. |
3) Easy Control: The start and stop of laser can be easily controlled by TTL level. |
4) The power supply has output open circuit protection. |
5) The power supply has TTL signal indication, water through signal indication and laser output indication. |
6)This power supply has the BUTTON to test output laser manually. |
7) Application: Carve and score adhesive sticker, carve and engrave acrylic, fabric, double color sheet and rubber.. |
Specifications
Input | Input voltage | AC198V-250V or AC99V-125V (please specify when placing order) |
AC frequency | 47-440HZ | |
Max input power | 550W | |
Output | Max output current | 5A |
Max output voltage | >=DC 40KV(AC220V input, no output load) | |
Max output current | >=DC 25mA | |
Efficiency | >=88%(full load) | |
MTBF(Mean time between failure) | >=10000hours | |
Response speed | <=1ms(from the TTL signal is given to the output current up to 90% of setting current) | |
Withstand voltage | Input-output,input-enclosure:AC1500V 10mA 60s,output cathode is connected with enclosure. | |
Weight | 3kg | |
Environment | Operating temperature:-10~40degrees, relative humidity:<=90% | |
Cooling | Force air cooling(FAC) | |
Dimension | L*W*H=280*173*97mm | |
Co2 Laser Power Supply Warranty
Directly Manufacturer Fully Guarantee For 12 months.
Technical Support
We have a professinal technical support group for all the item selling. If you need any assistance on your item problem, please do not hesitate to contact us, our technical support will be there to assist you.
Will you have any question,please feel free to contact me.
Fannie
Skype:sales003_92
Whatsapp:0086-15165137380
Wechat:x18865537453
Emial:sales003@laserpwr.com
