- Place of Origin: Jinan
- Brand Name: LASERPWR
- Model Number: C150

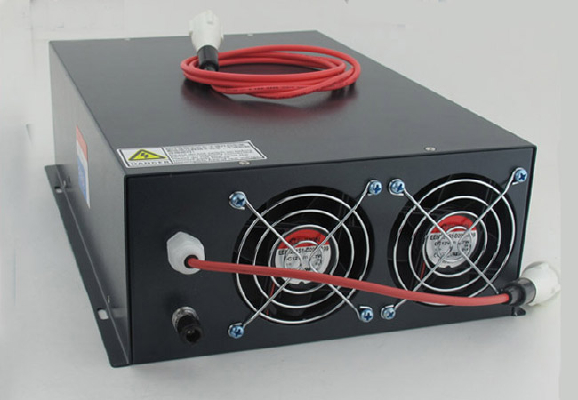

CO2 power supply 150W for DB9 laser machine
Model:HY-C150Y3
Main features
1)High output voltage and high output current: When input AC220V and output current up to 38mA, the voltage can be up to 25KV. |
2) Fast response speed: It can obviously enlarge laser power and prolong laser tube’s service life. |
3) Easy Control: The start and stop of laser can be easily controlled by TTL level. |
4) The power supply has output open circuit protection. |
5) The power supply has TTL signal indication, water through signal indication and laser output indication. |
6)This power supply has the BUTTON to test output laser manually. |
7) Application: Cut thick acrylic and fabric, etc. |
Specifications
Input | Input voltage | AC 220V or 110V(please specify when placing order) |
AC frequency | 47-440HZ | |
Max input power | 1000W | |
Output | Max output current | 10A |
Max output voltage | DC 50KV | |
Max output current | DC 38mA | |
Efficiency | >=90%(full load) | |
MTBF(Mean time between failure) | >=10000hours | |
Response speed | <=1ms(from the TTL signal is given to the output current up to 90% of setting current) | |
Withstand voltage | Input-output,input-enclosure:AC1500V 10mA 60s,output cathode is connected with enclosure. | |
Weight | 4.6kg | |
Environment | Operating temperature:-10~40degrees, relative humidity:<=90% | |
Cooling | Force air cooling(FAC) | |
Dimension | L*W*H=325*240*97mm(normal type) L*W*H=324*147*101mm(special type installed on the beam of laser cutting machine) | |
Co2 Laser Power Supply Warranty
Directly Manufacturer Fully Guarantee For 12 months.
Technical Support
We have a professinal technical support group for all the item selling. If you need any assistance on your item problem, please do not hesitate to contact us, our technical support will be there to assist you.
Will you have any question,please feel free to contact me.
Fannie
Skype:sales003_92
Whatsapp:0086-15165137380
Wechat:x18865537453
Emial:sales003@laserpwr.com
