- Place of Origin: Jinan
- Brand Name: LASERPWR
- Model Number: DY13
Main features

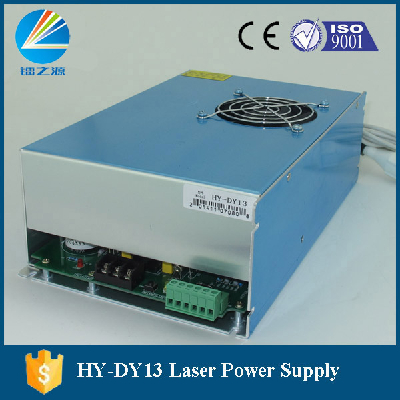

1)This power supply is specially designed for special laser tube. It makes laser tube output larger and more stable. |
2) Quick response speed and good effect: It can enlarge laser power and prolong laser tube’s service life. |
3) Easy Control: The start and stop of laser can be easily controlled by TTL level. |
4) The power supply has output open circuit protection. |
5) The power supply has TTL signal indication, water through signal indication and laser output indication. |
6)This power supply has the BUTTON to test output laser manually. |
7) Application: Sculpture and cut acrylic, fabric, double color sheet and rubber, etc. |
For more information, feel free to contact us.
E-mail: laser@laserpwr.com
Skype: laser.tube.power.supply
WhatsApp: 0086-152 5481 9073
- Place of Origin: Jinan
- Brand Name: LASERPWR
- Model Number: DY13
Specifications
Type | HY-DY13 | |
Input | Input voltage | AC220V or 110V(please specify when placing order) |
AC frequency | 47-440HZ | |
Max input power | 550W | |
Max input current | 8A | |
Output | Max output voltage | 40KV |
Max output current | 28mA | |
Efficiency | >=90%(full load) | |
MTBF(Mean time between failure) | >=10000hours | |
Response speed | <=1ms(from the TTL signal is given to the output current up to 90% of setting current) | |
Withstand voltage | Input-output,input-enclosure:AC1500V 10mA 60s,output cathode is connected with enclosure. | |
Environment | Operating temperature:-10~40degrees, relative humidity:<=90% | |
Cooling | Force air cooling(FAC) | |
Dimension | 78*161*247mm | |
Weight | 2kg | |
