- Place of Origin: Jinan
- Brand Name: LASERPWR
- Model Number: W120

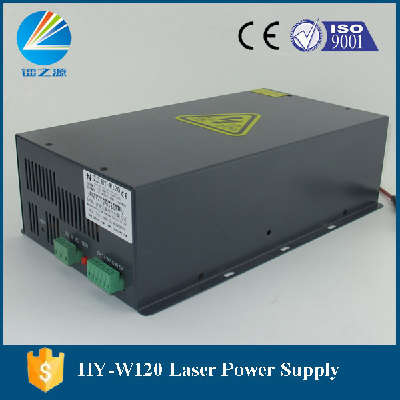

Main Feature of 100w 120w stabilivolt laser power supply
1. Very wide range of Input Voltage: AC110-AC260V
2. Current has high stability: in the range of Input AC160-AC260V, current change rate less than 1%.
3. Good compatibility: It can be applicable to 80W, 100W, 120W laser tubes manufactured by different factories.
4. This Power Supply has the”TEST” button which can test output laser manually.
5. The Laser Power Supply has high Output Power, good stability; this can prolong laser tube's service life
6. Application: Sculpture and cut acrylic, fabric, double color sheet ,rubber etc.
100W-120W Laser Cutting and Engraving Machine spare parts
For more information, feel free to contact us.
E-mail: laser@laserpwr.com
Skype: laser.tube.power.supply
WhatsApp: 0086-152 5481 9073
- Place of Origin: Jinan
- Brand Name: LASERPWR
- Model Number: W120
Specification of 100w 120w stabilivolt laser power supply
Input | Input Voltage | AC110V-260V | |
AC frequency | 47—440HZ | ||
Max input power | 1000w | ||
Max output current | 8A | ||
Output | Max Output Voltage | ≥DC 40KV | |
Max Output Current | ≥DC 35mA | ||
Efficiency | ≥90 percent (full load) | ||
MTBF | ≥10000 hour | ||
Response Speed | ≤1ms(from the switch Signal is given to the output current up to 90% of the setting current) | ||
Withstand Voltage | Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell. | ||
Environment | Operating Temperature:-10~40°C),Relative Humidity (RH)≤90 percent | ||
Cooling Way | Force-Air Cooling (FAC) | ||
Dimension | L×W×H=280*173*97 (mm) | ||
Color | Black | ||
